How To Measure 5 Lug Bolt Pattern : However, the same rule applies here as well.. Other common bolt patterns are 5×4.75 and 5×5. If your trailer wheel hubs have 5 lug bolts, measuring is slightly different. Select 2 bolts that have a 1 bolt spacing on either side. Diameter of a virtual circle passing through the center of all bolt holes. Measuring a 6 bolt wheel requires you to measure center to center of two holes directly across from each other.

Some wheels will fit multiple bolt patterns. Learn more about wheel dimensions. Other common bolt patterns are 5×4.75 and 5×5. Measure from the center of one lug to the outside edge of an opposite lug. An example of a 6 lug pattern measurement on a trailer wheel is 6 on 5.5 (inches).

How To Measure 5 Lug Wheel Bolt Pattern Bolt Pattern Fix My Car Automotive Repair
How To Measure 5 Lug Wheel Bolt Pattern Bolt Pattern Fix My Car Automotive Repair from i.pinimg.com
Select 2 bolts that have a 1 bolt spacing on either side. This distance is measured across the wheel center. Some wheels will fit multiple bolt patterns. This measurement is your bolt pattern diameter. Say the number of lug holes/studs on measurement, such as : Diameter of a virtual circle passing through the center of all bolt holes. If you don't have the template handy, you measure from the center of any hole, skip a hole in either direction and then measure to the outside edge of that hole. Or the way i prefer is to measure from the center of a bolt hole to the outside edge of either of the bolt holes furthest from.

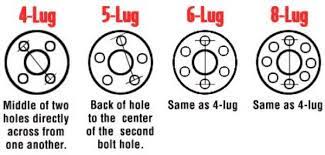

The diagrams below indicate the proper measuring methods.

This distance is measured across the wheel center. Extend the ruler directly across the center of the wheel to the adjacent lug to determine the measurement. The number you see will be the actual measurement of the bolt pattern. Done in the big ez read format. 4, 6, 8 lug wheels. To determine the bolt pattern on a 5 lug wheel, measure from the center of a wheel stud to the outer edge of the stud furthest away from it. You can also determine your 5 bolt pattern by measuring the distance between the center of one bolt hole, to the center of the bolt hole next to it. The easiest way to estimate the 5 lug bolt pattern, is to measure from the back of a hole to the center of the second hole. Or the way i prefer is to measure from the center of a bolt hole to the outside edge of either of the bolt holes furthest from. Take a look at our diagram for an illustration of how it is measured. An easy way to find the bolt pattern is to use a bolt pattern template. This measurement is your bolt pattern diameter. Diameter of a virtual circle passing through the center of all bolt holes.

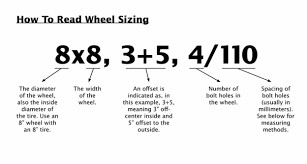

The easiest way to estimate the 5 lug bolt pattern, is to measure from the back of a hole to the center of the second hole. Measure from the center of one lug to the outside edge of an opposite lug. You need to start with the center of one hole and end up in the center of the opposite hole. The first number indicates how many bolt holes are in the wheel, and the second describes the diameter of the imaginary circle they make. To measure 6 lug pattern wheels, place the end of a ruler or tape measure in the center of one lug or bolt.

How To Measure Your Trailer S Wheel Bolt Circle Lug Or Bolt Pattern Pacific Trailers
How To Measure Your Trailer S Wheel Bolt Circle Lug Or Bolt Pattern Pacific Trailers from cdn.shopify.com
Measuring a 6 bolt wheel requires you to measure center to center of two holes directly across from each other. The easiest way to estimate the 5 lug bolt pattern, is to measure from the back of a hole to the center of the second hole. The distance that you are measuring is the diameter of a circle intersecting the center of each lug hole/stud. That should get you your bolt pattern measurement. If your trailer wheel hubs have 5 lug bolts, measuring is slightly different. Common bolt patterns are 4, 5, 6, or 8 lug holes. Measure from the center of one lug to the center of the lug directly across from it. Measure from the middle of one stud to the outside of the second stud (skipping a stud).

Learn more about wheel dimensions.

Say the number of lug holes/studs on measurement, such as : Measuring the bolt pattern on the 8 bolt rim is also piece of cake. To measure the rim bolt pattern on a wheel with 5 bolt holes, hold the tape measure on the edge of a bolt hole and measure across to the center of the 2nd hole. The number you see will be the actual measurement of the bolt pattern. A common measurement for a 5 bolt pattern is 120 millimetres (4.7 in) from the top of 1 lug to the center of another. 4, 6, 8 lug wheels. Some wheels will fit multiple bolt patterns. Measure from the center of one lug to the outside edge of an opposite lug. Measure from the center of one lug to the center of the lug directly across from it. How to measure 5 lug bolt patterns measure 5 lug wheel bolt patterns from the outside edge to center distance between two studs that are across the hub from each other. If the distance is 4 1/2 inches, the bolt pattern is 5 on 4 1/2. How to measure 5 lug bolt patterns measure 5 lug wheel bolt patterns from the outside edge to center distance between two studs that are across the hub from each other. To determine the bolt pattern on a 5 lug wheel, measure from the center of a wheel stud to the outer edge of the stud furthest away from it.

Measure from the middle of one stud to the outside of the second stud (skipping a stud). If the distance is 5 inches, the bolt pattern is 5 on 5 etc. If it measures 3 inches the bolt pattern would be 5 on 5. If your trailer wheel hubs have 5 lug bolts, measuring is slightly different. Select 2 bolts that have a 1 bolt spacing on either side.

Wheel Bolt Pattern Guide
Wheel Bolt Pattern Guide from cdn.discounttire.com
The number you see will be the actual measurement of the bolt pattern. So if you see 4 1/2 inches, you have a 5 on 4 1/2 (also 5×4.5 and 5×114.3) bolt pattern. Measuring the bolt pattern on the 8 bolt rim is also piece of cake. This measurement is your bolt pattern diameter. Now, start at the outer wall of the bolt hole and measure all the way to the center of the other bolt hole. The correct terminology for referencing bolt patterns is to. How to measure your trailer wheel bolt pattern if you're replacing your trailer wheel, you've no doubt realized you need to know something called the bolt pattern (also called the lug pattern or bolt circle). This measurement is your bolt pattern diameter.

Measuring the bolt pattern on the 8 bolt rim is also piece of cake.

However, the same rule applies here as well. Learn more about wheel dimensions. Measuring bolt patterns is a critical part of ordering wheels. Measure from the center of one lug to the center of the lug directly across from it. Measuring the bolt pattern on the 8 bolt rim is also piece of cake. Done in the big ez read format. For a 4 lug wheel, measure center to center of two holes directly across from each other. The number you see will be the actual measurement of the bolt pattern. If it measures 3 inches the bolt pattern would be 5 on 5. When purchasing a trailer, you will want to make sure that the bolt pattern on the wheels of the trailer are standard among the industry. Bolt patterns with an even number of lugs are measured from bolt center to bolt center while 5 lug bolt patterns are measured from the top of the upper lug to the center of the lower lug. How to measure 8 lug bolt pattern. The correct terminology for referencing bolt patterns is to.

So if you see 4 1/2 inches, you have a 5 on 4 1/2 (also 5×45 and 5×1143) bolt pattern how to measure lug pattern. For a 4 lug wheel, measure center to center of two holes directly across from each other.
